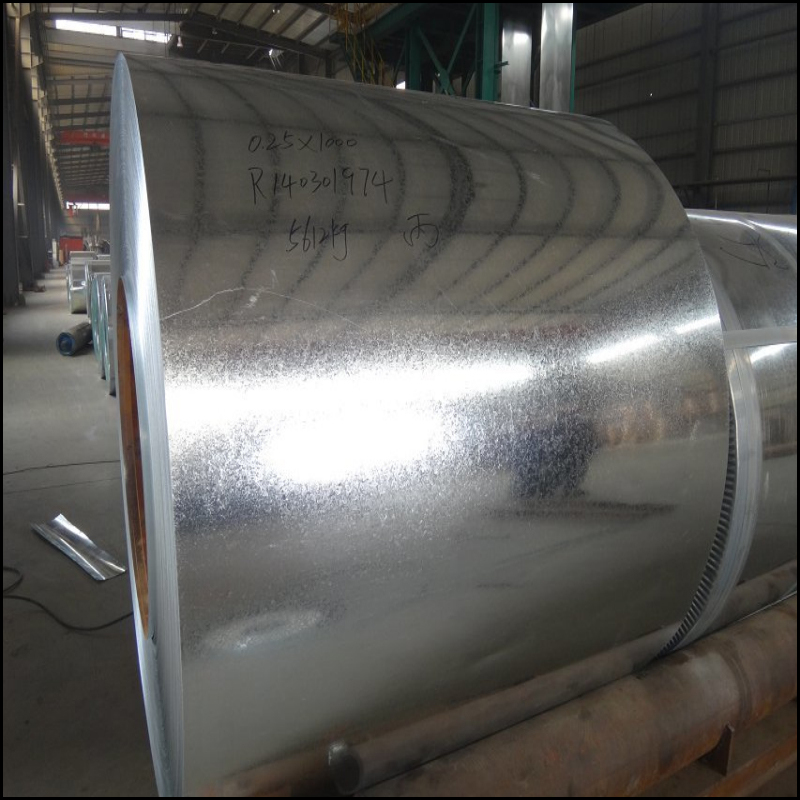

We adopted hot dip galvanized process which is the most advanced and wild used in the world .The main specification of product is 0.15-1.20mmχ800-1250mm.We could manufacture high performance of GI with high zinc coating ,none-spangle ,minimum spangle ,regulatr spangle or big spangle along with the advanced processing of oiled or skin-passed .The proudct can be used in building materialas ang electrical appliance .
Type | Zinc aluminium roofing sheet;Hot rolled steel coil / HRC/HRS/ Hot rolled steel sheet |
Standard | JIS, AISI, ASTM, GB, DIN, EN, ASTM |
Thickness | 0.12mm-1.20mm; 2.0-16mm |
Width | 600mm — 1500mm; ≤1500 mm |
Length | available with customer’s requirement |
Tech | hot dipped ,Hot Rolled |
Origin | Ukraine,Russia |
Applications | construction field ,ships building industry ,Petroleum and chemical industries , war and electricity industries ,food processing and medical industry, boiler heat exchanger, machinery and hardware fields |
NAME | PPGI | GALVANIZED | GALVALUME/ALUZINC |
CERTIFICATE | ISO9001:2008 | ||
STANDARD | EN10142 JIS G3302 GB/T-12754-2006 |
ASTM A653 JIS G3302 SGCC/SGCH GB/T2518 European Standard |
ASTM A792 JIS G3321 JIS G3317 |
GRADE | CGCC CGCH CGCD1-CGCD3 CGC340-CGC570 GRADE |
SS GRADE33-80 SGCC SGCH SGCD1-SGCD3 SGC340-SGC570 SGCC DX51D |
GRADE33-80 SGLCC SGLCD SGLCDD SGLC400-SGLC570 SZACC SZACH SZAC340R |
MODEL NO | 0.12MM-1.5MM*1250MM OR UNDER | (0.12-1.5)*1250MM OR UNDER | 0.12MM-1.5MM*1250MM OR UNDER |
TYPE | Steel coil Steel sheets/plates Corrugated steel sheets/plates |
Steel coil Steel sheets/plates Corrugated steel sheets/plates |
Steel coil Steel sheets/plates Corrugated steel sheets/plates |
TECHNIQUE | Hot rolled-cold rolled -galvalume /galvanized -PPGI/PPGL |
Hot rolled-cold rolled — galvanized |
Hot rolled-cold rolled -galvalume /Aluzinc |
SURFACE TREATMENT |
Mini/regular/big/zero spangle, Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint, Coating,color |
Mini/regular/big/zero spangle, Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint, Coating |
|
APPLICATION | Structural use ,roofing, commercial use, household appliance, industry, family | ||
SPECIAL APPLICATION |
Wear resistant steel, high- strength — steel plate |
Steel Grade: | C% | Mn% | Si% | S%: | P%: |
0.14-0.22 | 0.60-0.85 | 0.05-0.30 | 0.050max | 0.040max | |
3SP | |||||
0.28-0.37 | 0.80-1.00 | 0.15-0.30 | 0.050max | 0.040max | |
5SP | |||||
0.13max | 0.30-0.55 | 0.30max | 0.045max | 0.045max | |
Q195 | |||||
0.14-0.24 | 0.30-0.65 | 0.45max | 0.045max | 0.045max | |
Q235 | |||||
0.16-0.25 | 0.40-0.70 | 0.45max | 0.045max | 0.045max | |
Q255 | |||||
0.30max | 0.65-0.75 | 0.45max | 0.045max | 0.045max | |
Q275 | |||||
0.17-0.25 | 1.20-1.60 | 0.40-0.80 | 0.050max | 0.050max | |
20MnSi | |||||

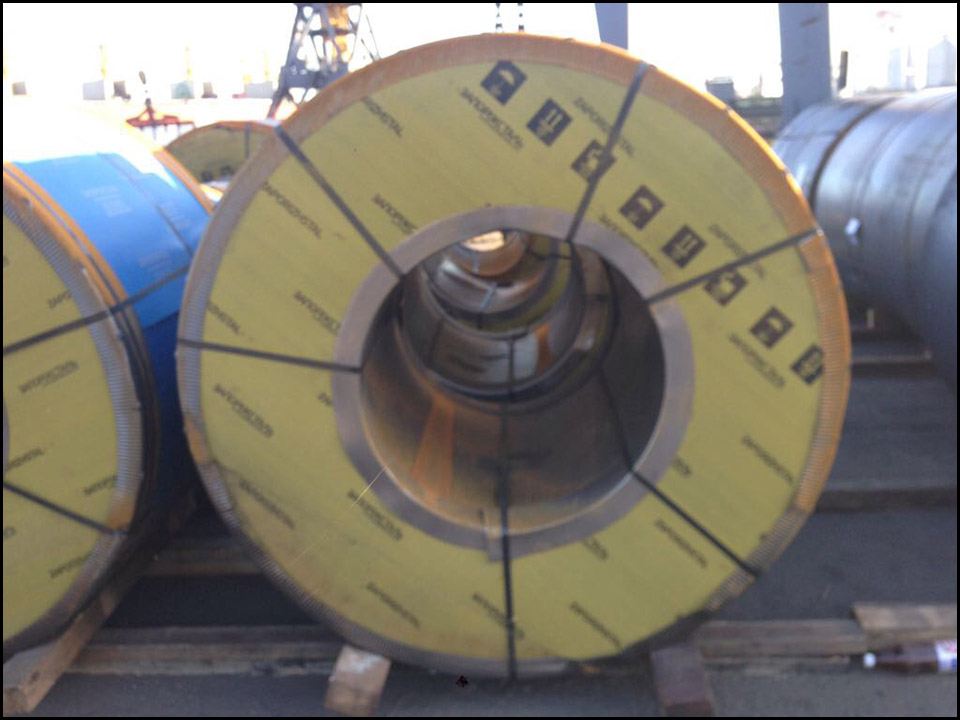

1. Interior edge protector (steel ring)
2. Interior steel coil protector (galvanized steel)
3. Exterior edge protector (steel ring)
4. Outer steel coil protector (galvanized steel)
5. Packing strap (3 crosswise strapping bands, 4 lengthwise strapping bands)
6. Locker for strap
7. Locker protector
8. Waterproof paper (is wrapped on the surface of a galvanized steel coil)
9. Plastic film (is wrapped on the surface of waterproof paper)
10. Steel coil
11. End cover (disc)
(1) Inner side: by kraft paper and plastic packing.
(2) Outside: by steel sheet and tie by steel strip.
Or as your request.
Delivery Time
15-20days after receiving your order
15-20days after receiving your order
